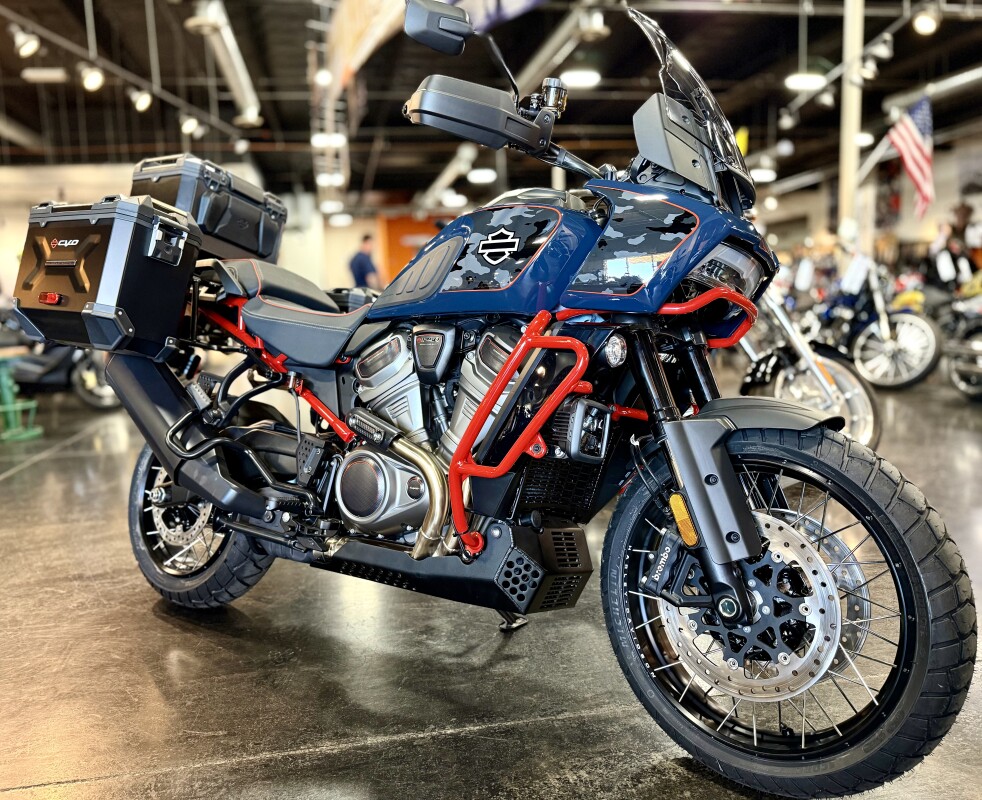

The most functional go-anywhere motorcycle in Harley-Davidson’s lineup, with limited-edition paint and all the factory-installed accessories you could ever want, the CVO Pan America is ready to go as far as you want, straight from the showroom floor.

*Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. *Price, if shown and unless otherwise noted, represents the Manufacturer's Suggested Retail Price (MSRP) or dealer unit price and does not include government fees, taxes, dealer vehicle freight/preparation, dealer document preparation charges, labor, installation, or any finance charges (if applicable). MSRP and/or final sales price will vary depending on options or accessories selected; contact dealer for more details.Images, where available, are presented as reasonable facsimiles of the offered unit and/or manufacturer stock images. Non-standard options or features may be represented. No guarantee of availability or inclusion of displayed options should be inferred, contact dealer for more details.

Specifications

  • Dimensions
    add remove
    • Length:
      92.3 in
    • Rake (steering head):
      25
    • Trail:
      4.3 in
    • Wheelbase:
      62.4 in
    • Tires, front specifications:
      120/70R19 60V
    • Tires, rear specifications:
      170/60R17 72V
    • Fuel Capacity:
      5.6 gal
    • Oil capacity:
      4.75 qt.
    • Weight, as shipped:
      626 lbs
    • Weight, in running order:
      659 lb
    • Luggage capacity – volume:
      4.24 cu ft (0.12 m3)
    • Tire, type:
      Michelin® Scorcher “Adventure”, Radial
  • Engine
    add remove
    • Engine:
      Revolution® Max 1250
    • Bore:
      4.1 in
    • Stroke:
      2.8 in
    • Displacement:
      76.40 in3
    • Compression ratio:
      13.0:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      95.1 ft-lb
    • Engine torque (RPM):
      6750
    • Lean angle, right (deg.):
      42
    • Lean angle, left (deg.):
      42
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      46 mpg (5.1 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Gear, 49/89 ratio
    • Gear ratios (overall) 1st:
      13.11
    • Gear ratios (overall) 2nd:
      9.687
    • Gear ratios (overall) 3rd:
      7.509
    • Gear ratios (overall) 4th:
      6.057
    • Gear ratios (overall) 5th:
      5.08
    • Gear Ratios (overall) 6th:
      4.436
  • Chassis
    add remove
    • Front fork:
      47mm inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH). Aluminum fork triple clamps
    • Rear shocks:
      Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping and Adaptive Ride Height (ARH)
    • Wheels, front type:
      Annodized aluminum tubeless laced
    • Wheels, rear type:
      Annodized aluminum tubeless laced
    • Brakes, type:
      Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
    • Brakes, caliper type:
      Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
  • Infotainment
    add remove
    • Screen size:
      6.8 in
    • Type:
      Color TFT w/ Touch
    • Headset specifications (if equipped):
      Bluetooth
    • Languages:
      Arabic, Chinese, (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Headset function only
    • Vehicle information screen:
      TPMS, Engine temp, Battery Voltage, Ambient Air Temp
    • USB:
      Charging and Instrument update, USB-C, 5V, 3A
    • Bluetooth:
      Phone/Media Supported
